Arc flash study for your plant in India in compliance with CEA 2023 and NFPA 70E

Pharmaceutical, steel, power generation, oil and gas terminals, solar, wind and battery storage, chemicals and fertilisers, cement, food and consumer goods, and IT campuses. VB Engineering has delivered 1,000+ arc flash studies since 2014, working on every bus from HT switchgear to LT distribution, with labels printed and installed.

Yes, in substance and in enforcement. CEA 2023 Regulation 21(2)(b) requires that every person working on an electric supply line or apparatus be provided with a device protecting against injury due to arc flash, conforming to the relevant standards. Conformity cannot be demonstrated without an incident energy figure, and the figure comes from the study.

Above 250 kW connected load, CEA 2023 Regulation 5(3) also requires a designated Electrical Safety Officer who inspects the installation at intervals not exceeding one year and keeps the record on a prescribed form, available to the Electrical Inspector.

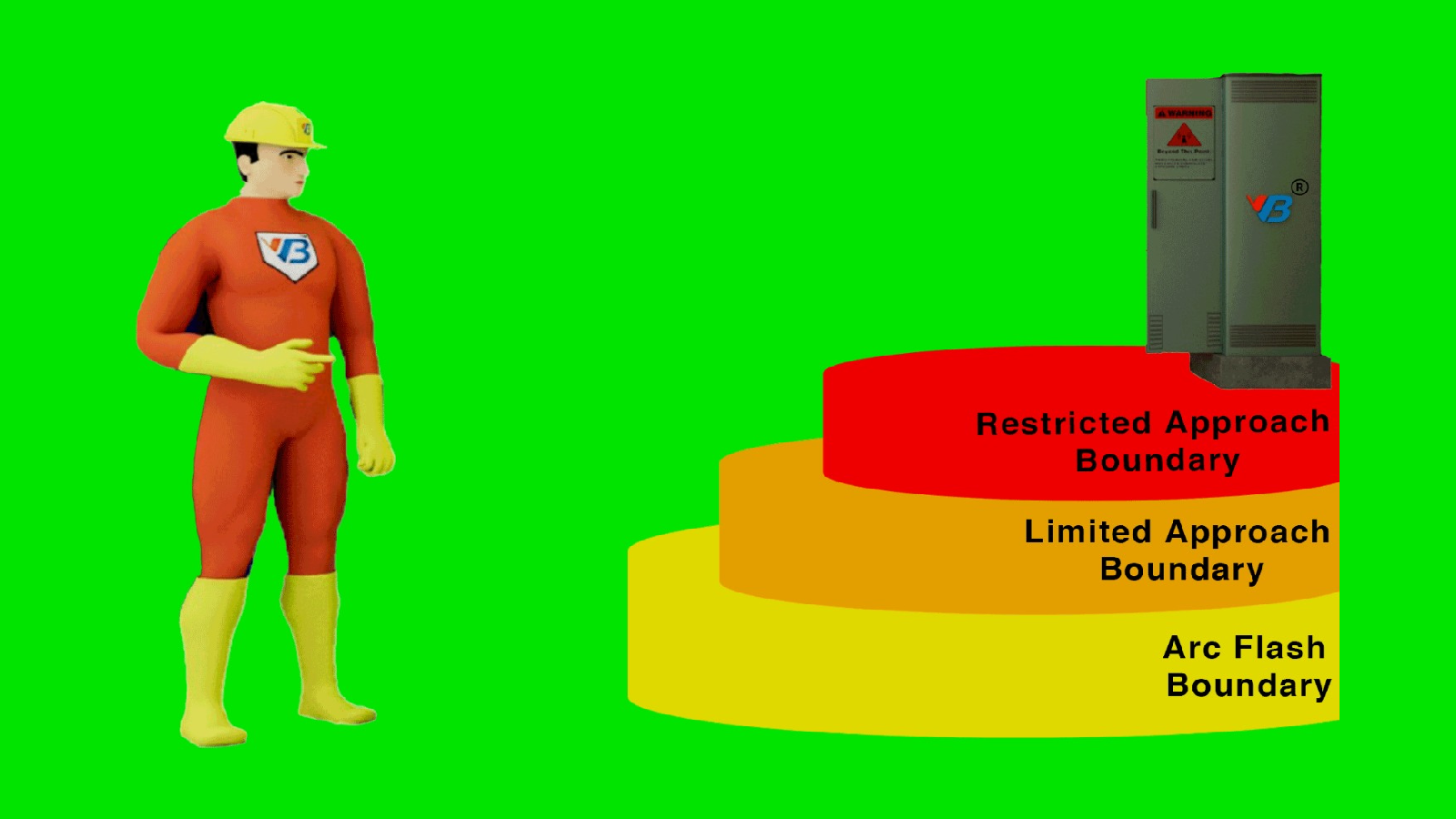

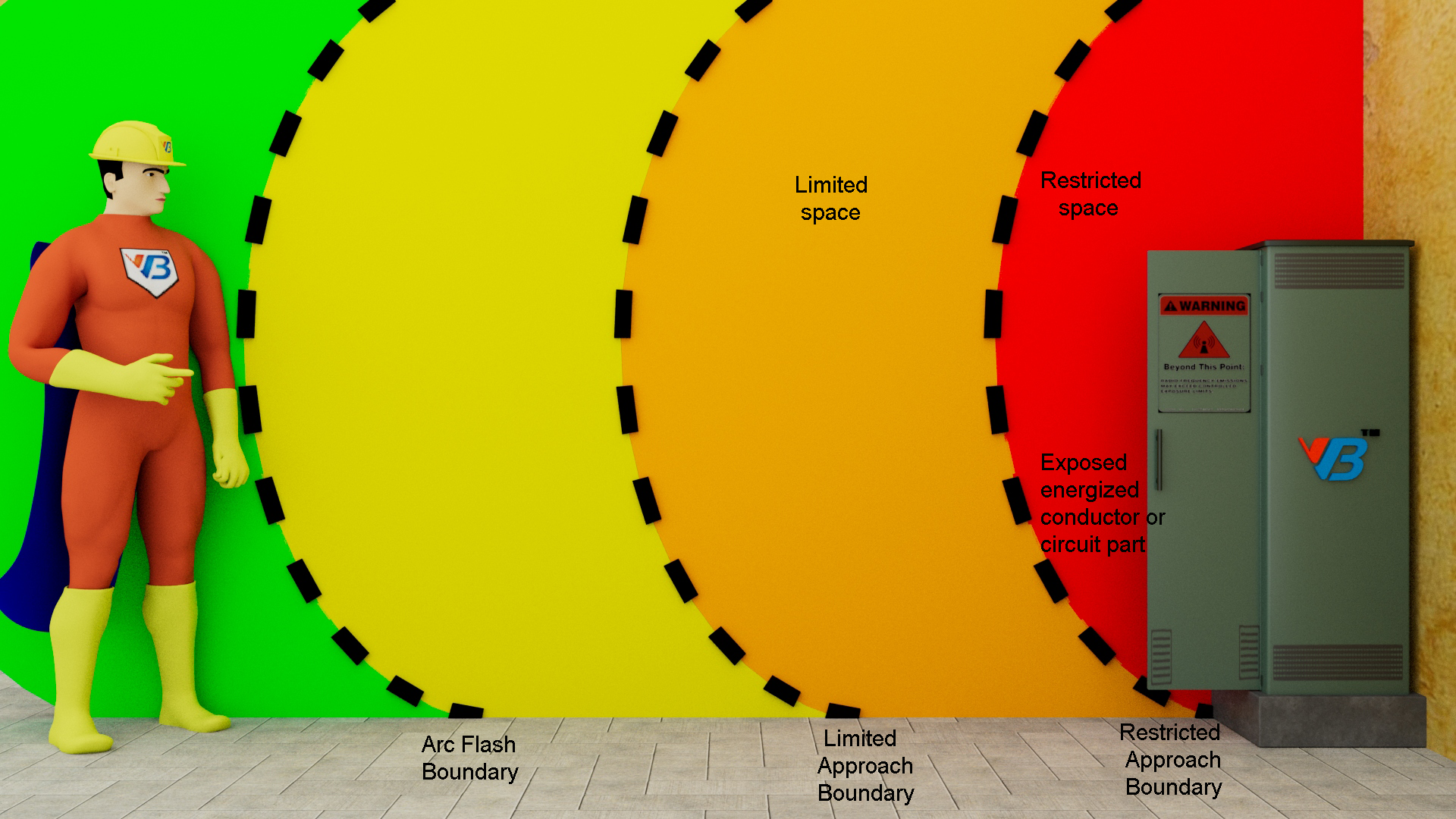

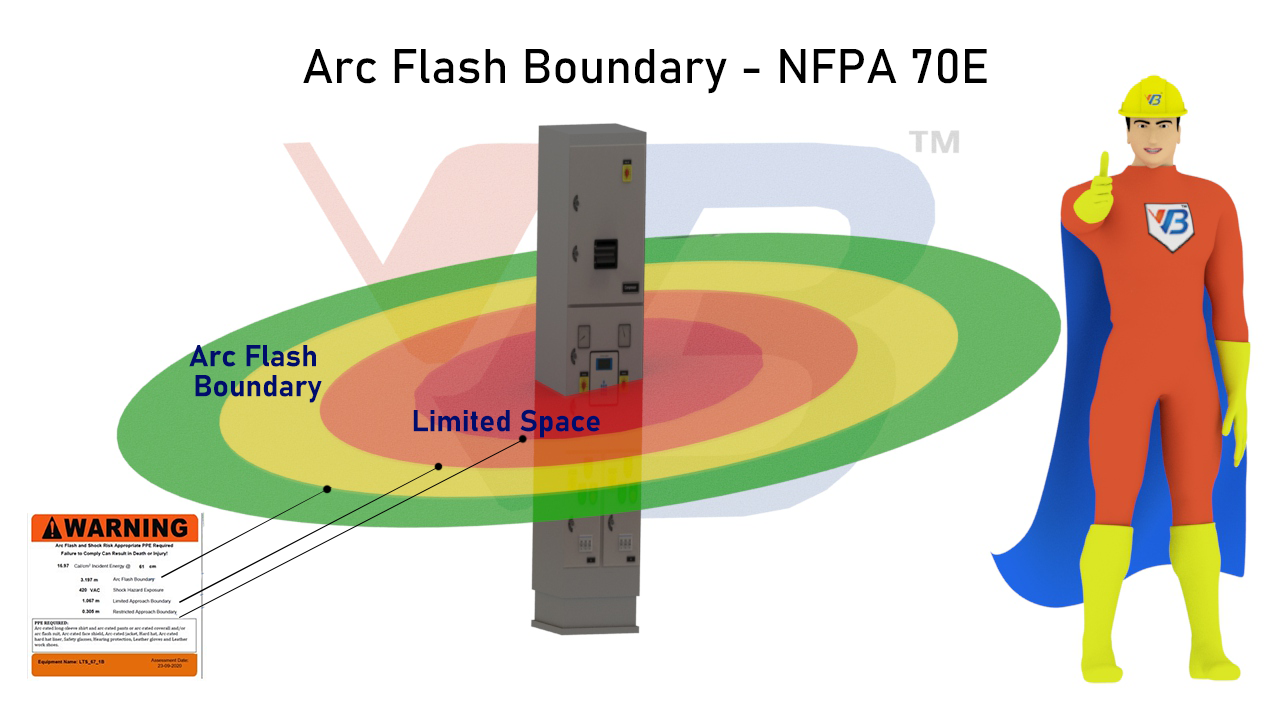

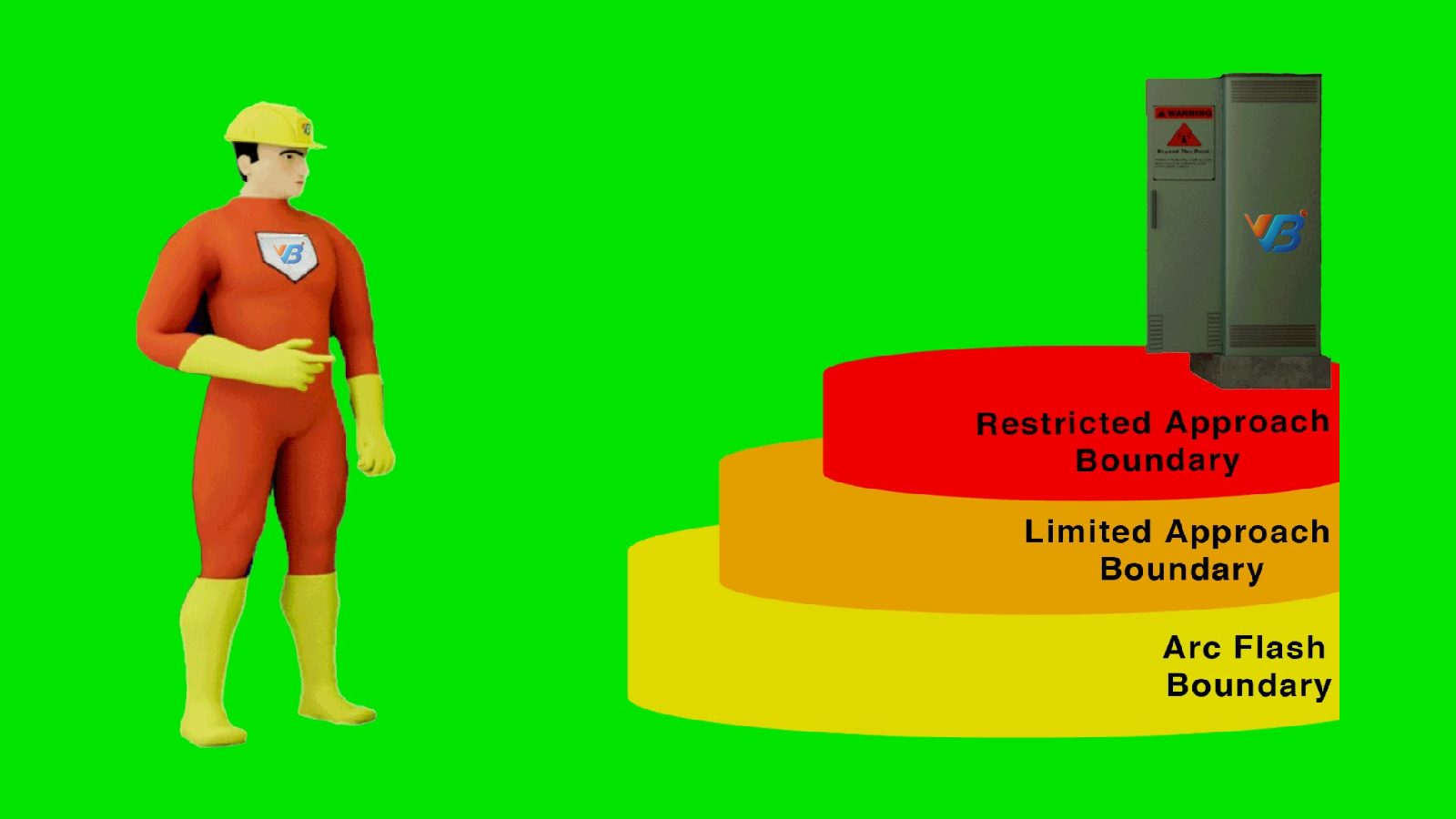

The distance at which incident energy falls to 1.2 cal/cm², roughly 5 J/cm², which is the onset of a second degree burn on bare skin. Inside that distance arc-rated protection is required. It is calculated, never looked up. Fault current, clearing time and working distance decide it, and all three are specific to that bus.

To IEEE 1584-2018, from the available fault current and the protective device clearing time at each bus. The 2018 model normalises on a 20 inch by 20 inch enclosure opening, and the standard low voltage reference working distance is 18 inches. This is why protection coordination has to be settled before an incident energy result means anything.

A connected set of power system studies ending in an incident energy result per bus: load flow, short circuit, protective device coordination, then arc flash. It produces the boundary, the required arc rating and the label content for each piece of equipment, and it identifies where a settings change would lower the hazard.

You will also see the same work called an arc flash hazard assessment, an arc flash risk assessment or an arc flash analysis. In the Indian market these names are used interchangeably. Ask what the scope covers and how many buses it includes, because that is what differs between quotations, not the title on the cover.

Bus count decides it. So does how much of your drawing set survives contact with the plant. Data capture is the variable. Modelling is not. We quote against a stated bus count and a stated access plan, and we tell you before we start which parts of your drawing set are likely wrong.

Two clocks run, and they do different jobs. NFPA 70E sets the review of the arc flash risk assessment at intervals not exceeding five years. CEA 2023 Regulation 5(3) is separate and shorter. Above 250 kW connected load the designated Electrical Safety Officer inspects the installation at intervals not exceeding one year, and records it on a prescribed form.

The calendar is the floor, not the rule. Any change to the network invalidates the number before either clock runs out. A new transformer, a changed relay setting, an added feeder, a revised fault level from the utility. Incident energy is a calculated result, and the inputs moved.

Ask your utility for the fault level in writing once a year. If it has moved, your labels are already wrong, and no calendar would have told you.

There is a standard written for exactly this question and almost nobody uses it. IEEE 1584.1-2022 is the Guide for the Specification of Scope and Deliverable Requirements for an arc flash hazard calculation study. It exists so an owner can write a scope a bidder cannot read loosely. It covers three-phase 50 or 60 Hz systems at 1000 V and below, so every 415 V board in an Indian plant sits inside it.

A scope worth issuing states the bus count, who collects the data and who supplies it, the calculation standard and its edition, the deliverables, the label format and language, and who signs the report. Anything vaguer produces quotations you cannot compare.

Send us a single line diagram and we will draft that scope for you, in your name, before you go to tender. You are then free to issue it to anyone you like.

An electrical safety audit asks whether the installation is safe against a checklist. An arc flash study asks a narrower and harder question: if this bus faults while somebody is standing in front of it, how much energy reaches them, and what must they be wearing. The audit is broad and comparative. The study is a calculation, and it produces a number you can print on a door.

No. And the difference decides whether two quotes can be compared at all. Arc flash testing means a physical test: proving a relay trips at the setting it is supposed to, or confirming arc-rated clothing meets the rating on its label. An arc flash study is a calculation across the whole network. The study tells you what the energy is; testing confirms the equipment behaves the way the study assumed it would. A study built on relay settings nobody has tested is built on an assumption. So we ask when the protection was last proved.

We operate globally. Our teams deliver arc flash studies in more than 20 countries, and our systems are digitised end to end, from data capture through modelling and independent review to label production. We can assess a plant and deliver the arc flash report anywhere in the world.

Proximity decides the travel plan. It does not decide whether the work can be done. What matters is that the team that walked your plant is the team that builds the model, and the engineer who saw the panel is the one who answers for the number.

It is priced against bus count, site access and how much verification the existing drawing set needs, so a figure quoted before any of those are known is not a price, it is a guess. Send us a bus count and a single line diagram and you will get a scoped number. If a competing vendor does not state the bus count their quote covers, the two quotes are not comparable and you should ask before you decide.
