Arc Flash Risk Assessment India · NFPA 70E 2027 & CEA 2023 Compliance
Arc flash risk assessment as per NFPA 70E 2027 & IEEE 1584-2018 for a plant in India
An arc flash risk assessment is not valid because it was carried out. It is valid because the model matched the plant, the protection settings were read off the relay, and a Chartered Engineer put his name to the result.
Trusted by
The clause, not the summary
What NFPA 70E 2027 actually asks for
NFPA 70E puts the arc flash risk assessment in Article 130.5. It is not a document the standard asks you to file. It is a determination you must be able to defend.
What follows is our reading of the clause, not the clause itself. The official text is published by the National Fire Protection Association and it is the only authority. Any summary, including this one, is a guide to what to look for when you read it.
The clause requires three things. Identify the arc flash hazard. Estimate the likelihood of injury and the severity if it occurs. Decide what protective measures are needed, including the personal protective equipment a worker must wear at that specific piece of equipment.
Two points are routinely missed on Indian sites.
The assessment is reviewed at intervals not exceeding five years, and sooner whenever a change to the electrical installation could alter the result. A new transformer, a changed relay setting, a bus-tie left closed, a utility fault level revision. Any of these ends the validity of the number on the label.
130.5(F) permits either the incident energy analysis method or the arc flash PPE category method, but not both on the same piece of equipment. A report that prints a calculated incident energy figure and a PPE category on one label has mixed two methods the standard keeps apart. We calculate. We do not table.
If a report cannot tell you which method it used, it has not made the determination 130.5 asks for.
Not one obligation. Two.
Two clocks run on an Indian plant
Most Indian arc flash discussion stops at NFPA 70E. That leaves half the duty unstated.
The first clock is the standard. NFPA 70E sets the review of the arc flash risk assessment at intervals not exceeding five years.
The second clock is Indian law, and it runs five times faster. The Central Electricity Authority (Measures relating to Safety and Electric Supply) Regulations, 2023, set it. Regulation 5(3) requires an installation above 250 kW to have an Electrical Safety Officer. It requires inspection at intervals not exceeding one year. The records go on Forms I to IV of Schedule II, and are produced to the Electrical Inspector on demand.
They are not the same obligation and they do not discharge each other. A five-year study does not satisfy an annual inspection. An annual inspection does not produce an incident energy figure.
And the regulations name the hazard directly. Regulation 21(2)(b) requires that a person working on a supply line or apparatus be provided with
any other device for protecting him from mechanical and electrical injury due to arc flash and such personal protective equipment, tools and devices shall conform to the relevant standards.
Read from the issued Gazette text. Conforming arc flash PPE cannot be selected without an incident energy figure. The duty to protect therefore presupposes the calculation, even though the regulations never name the study.
Regulation 32(7) supplies the consequence. An installation whose defects are not rectified is liable to be disconnected on forty-eight hours' notice.
What to write into the enquiry
What a compliant arc flash risk assessment contains
Assessments are quoted against a scope, and a thin scope is how a cheap number is produced. Ours covers eight items. Use the eight below as a template for your own tender, whether you issue it to us or to anyone else. A comparable scope is the only way two quotations can be compared honestly.
- Site walkdown and as-found verification. Every bus from HT to LT, opened, read and photographed. Nameplate data taken off the equipment, not off a drawing.
- Single line diagram reconciled to the plant. The drawing set and the installation disagree on almost every brownfield site. That gap is where the incident energy hides.
- Protection settings read off the relay. Not the design intent. The setting actually in the device on the day.
- Utility fault level, obtained in writing from the licensee, with the date it was issued.
- Short circuit and coordination study, because the clearing time that drives incident energy comes from the protection, not from the fault.
- Incident energy calculation to IEEE 1584-2018 at every working point.

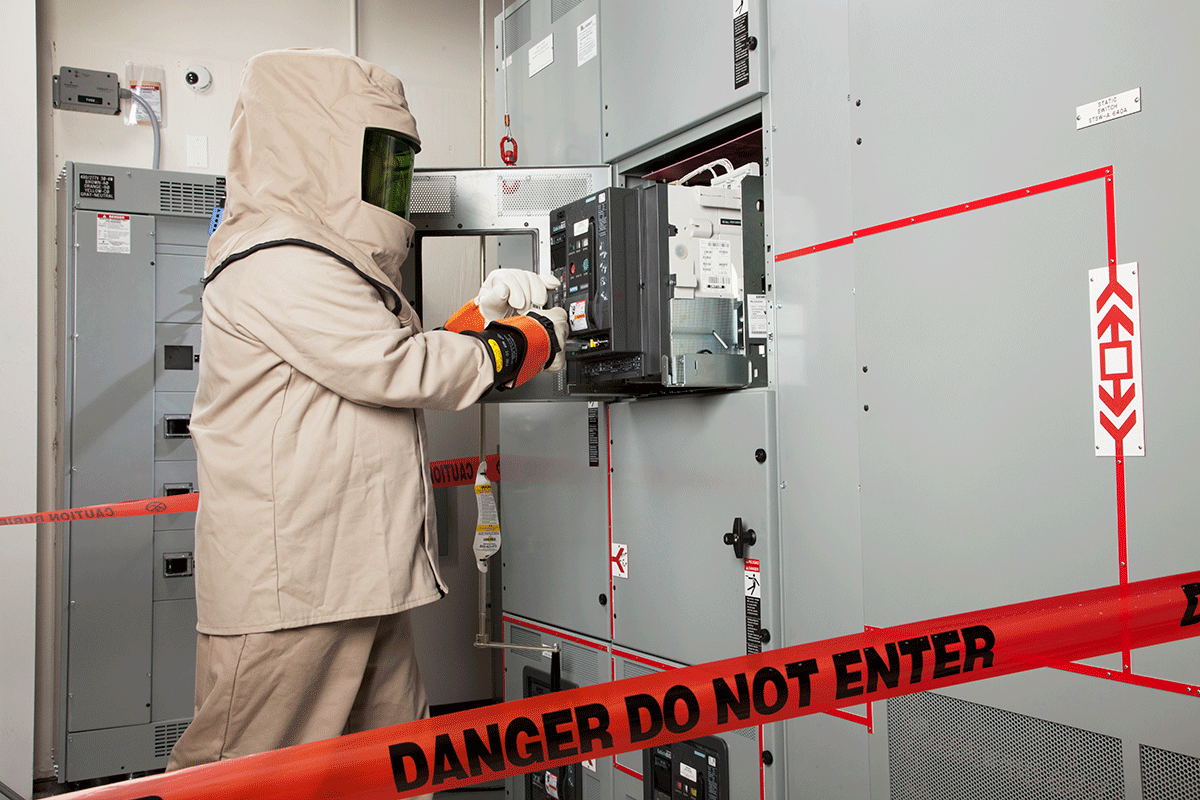

- Arc flash boundary and approach boundaries, with the labels produced, installed and photographed.
- Mitigation recommendations, ranked, with the incident energy each one removes.
If a scope of work omits items 3 and 4, the report is a model of a plant that does not exist.
The method behind the number
How the incident energy is actually calculated
NFPA 70E sets the duty. It does not calculate anything. The arithmetic comes from IEEE 1584-2018, the IEEE Guide for Performing Arc Flash Hazard Calculations.
The 2018 edition replaced the single equation most Indian reports were still using. It models five electrode configurations, because an arc behaves differently in a vertical bus inside an enclosure than it does in open air, and it treats enclosure size as an input rather than an assumption.
The inputs that decide the answer are the bolted fault current, the arcing current derived from it, the clearing time of the upstream protective device at that arcing current, the working distance, the electrode configuration and the enclosure dimensions.
Clearing time is where most errors live. An arcing current lower than the bolted fault current can fall onto a slower part of the relay curve, and a device that trips in 50 milliseconds on paper can take two seconds in fact. The energy scales with the time.
We model in ETAP, PTW SKM or CYME, according to what the client's own engineering standard specifies. The platform does not change the answer. The data going into it does.
The requirement that outlives the report
Who is qualified to work to the number

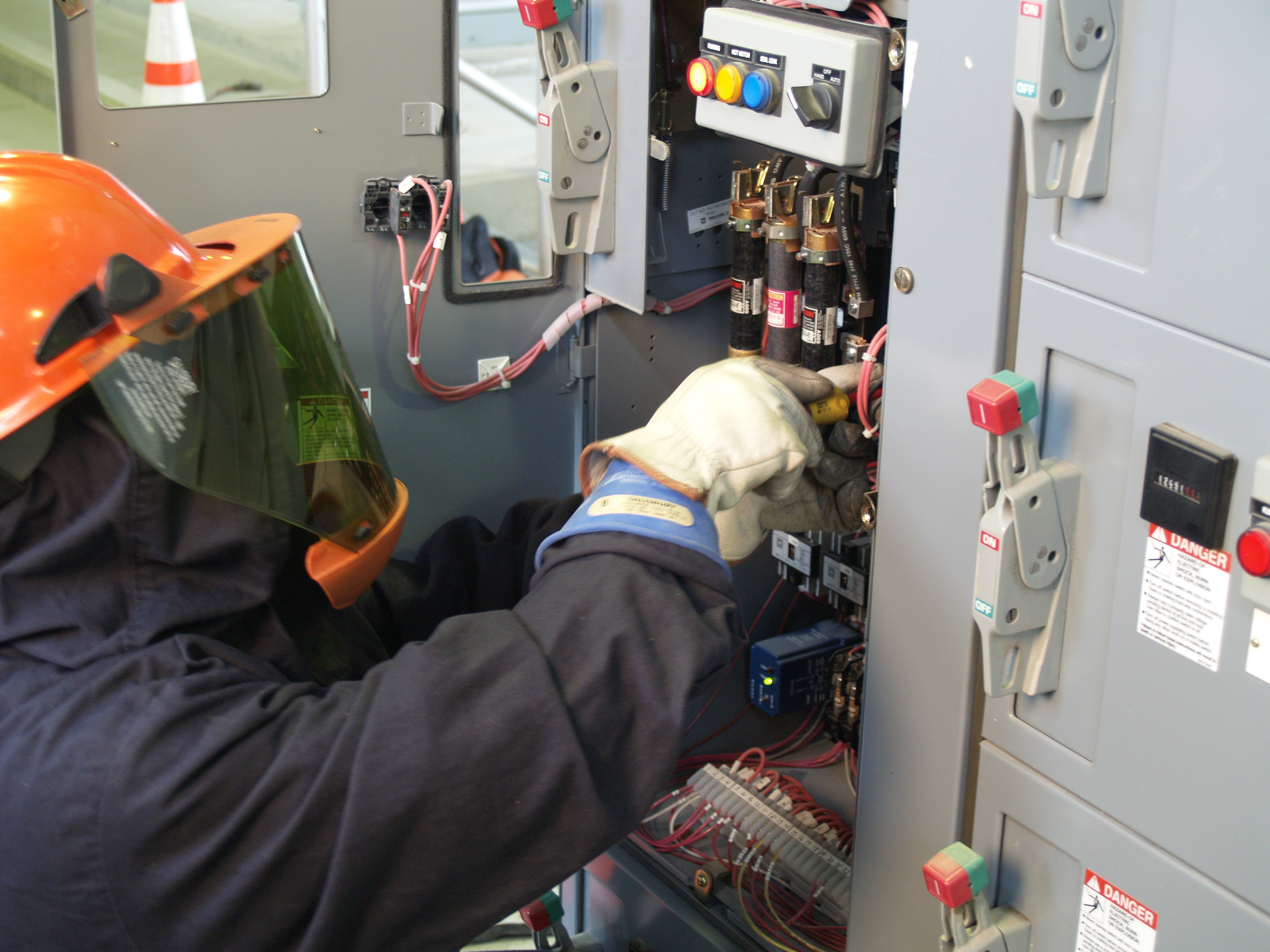

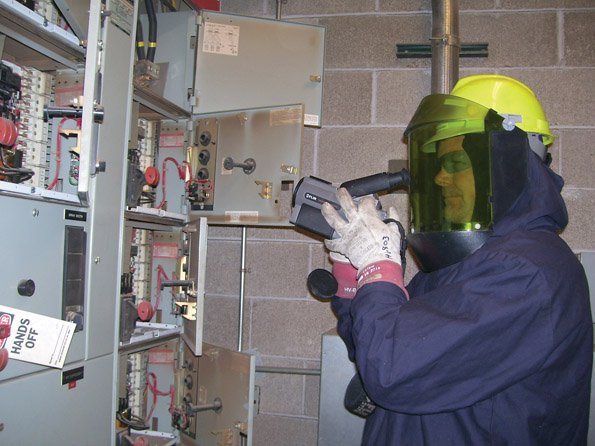

An assessment produces a figure in cal/cm² at a panel door. That figure protects nobody on its own. It protects the person who opens the door, and only if he can read the label, knows where the boundary falls, and knows which category of protection the number demands.
NFPA 70E does not stop at the study. It requires the employer to train and document qualified persons, and to retrain them at intervals not exceeding three years. Training records are as much a part of compliance as the report is, and they are what an inspector asks for after an incident.
The gap on most Indian sites is not the calculation. It is that the electrician at the MCC and the contract workforce at the incomer were never taught what the sticker on the door means.
We certify qualified persons in virtual reality, at the panel rather than in a classroom. A trainee wearing a Drona VR headset can open the wrong cubicle, reach past a boundary, or select the wrong protection, and learn what follows without anyone being hurt. It is the only setting in which a person can make that mistake once and remember it.
VB Engineering has delivered 1,000+ studies since 2014 and certified 10,000+ qualified persons through Drona VR immersive training.
The deliverable, and the signature on it
What you receive, and who answers for it
Arc flash and shock risk labels
Printed, installed on the panel and photographed in place. The photograph is the evidence that the label exists.
CEA 2023 conformance matrix
Clause by clause, what the installation satisfies and what it does not, in the form an Electrical Inspector reads.
Single line diagram reconciled to as-found
Corrected against the walkdown. Usually the most valuable thing in the pack.
Field data pack
Nameplates, relay settings, photographs, the utility fault level letter and the date it was issued.
Action register
Ranked mitigation, each item with the incident energy it removes and the cost of removing it.
Every report is signed by a Chartered Engineer, and independently reviewed by a second Chartered Engineer who did not build the model. The engineer who walked the plant is the engineer who answers for the number. That is the promise the first line of this page makes, and it is the one thing in the deliverable that cannot be subcontracted.
Questions from Indian plants
Questions from Indian plants
Is arc flash analysis legally required under CEA Safety Regulations 2023?
In substance and in enforcement, yes. CEA 2023 Regulation 21(2)(b) requires that a person working on a supply line or apparatus be provided with a device protecting against injury due to arc flash, conforming to the relevant standards. Conforming protection cannot be selected without an incident energy figure, and an incident energy figure comes only from an assessment. The regulations create the duty. The assessment is how it is discharged.
What does mandatory actually mean in Indian electrical law?
Indian safety law generally imposes duties of outcome rather than prescribed methods. It tells an occupier what must be achieved and leaves the means to him. Fire risk assessment and machine guarding work the same way. So the honest answer is that no Indian regulation orders you to commission an arc flash study by name, and several regulations make it very difficult to demonstrate compliance without one. The scrutiny moment is not a routine audit. It is the inspection that follows an incident.
Which Indian standard covers arc flash hazard assessment?
No Indian Standard sets out an arc flash incident energy method. IS 3043 covers earthing, IS 15652 covers insulating mats for electrical purposes, and CEA 2023 covers duties rather than calculations. The calculation is taken from IEEE 1584-2018 and the work practice from NFPA 70E, which is why an Indian assessment is normally written against Indian regulation and international method together.
What is the difference between an arc flash risk assessment and an electrical safety audit?
An electrical safety audit is broad and largely observational. It examines earthing, cable routing, housekeeping, documentation and practice, and it reports against a checklist. An arc flash risk assessment is narrow and computational. It produces a number in cal/cm² at every working point, and that number decides what a worker wears. Most Indian plants already budget for the audit. The assessment is a separate line, and the audit cannot produce its output.
What documentation should we keep between assessments?
Keep four things and the next assessment costs less. Every relay setting change, with the date and who authorised it. Every addition or replacement of a transformer, breaker or cable. The utility fault level letter, refreshed annually. And the Forms I to IV inspection records under CEA 2023 Regulation 5(3). Without them the next study repeats the data collection, which is the most expensive part of it.
Do you have engineers near me?
We operate globally. Our teams deliver arc flash studies in more than 20 countries, and our systems are digitised end to end, from data capture through modelling and independent review to label production. We can assess a plant and deliver the arc flash report anywhere in the world.
Proximity decides the travel plan. It does not decide whether the work can be done. What matters is that the team that walked your plant is the team that builds the model, and the engineer who saw the panel is the one who answers for the number.
Start with the bus count
Tell us what you have, and we will scope the assessment
Bus count, voltage levels and whether a single line diagram exists. That is enough to scope the work and tell you which of the two clocks you are behind on.
