Arc Flash PPE

Core Advantages

Scope

ARC FLASH PPE with respect to the incident energy calculated should be used by working personnel. VB Supplies all categories of ARC FLASH PPE

PPE Details

Arc-rated long-sleeve shirt and arc-rated pants or arc-rated coverall and/or arc flash suit, Arc-rated face shield, Arc-rated jacket, Hard hat, Arc-rated hard hat liner, Safety glasses, Hearing protection, Leather gloves and Leather work shoes

Standards & Compliance

We provide PPEs in compliance with ASTM (American Society for Testing and Materials) requirements and OSHA regulations.

arc flash suit, arc flash ppe, arc flash ppe category

Other Offerings

SLD Preparation

A single-line diagram (SLD) is a high-level schematic diagram showing how incoming power is distributed to the equipment. It is the blueprint for ...

Short Circuit Studies

We create system Short Circuit withstanding capability with reference to OEM ratings. Collecting data, preparing SLD, calculating short circuit currents using system ...

Protective Device Coordination

Collecting the data required for short circuit coordination study, modelling the Protection Relay and other overcurrent ...

Arc Flash Risk Assessment

On site data collection, data verification, digitization, modelling, performing all the studies, categorizing boundaries and generating final report.

Harmonic Analysis

Measurement of the power harmonics harmonics with Fluke electrical harmonic distortion analyser. Perform the electrical power study analysis ...

Load Flow Studies

Data collection, design, analysis, recommendations, and implementation. The total cycle of execution will be a single window solution ...

Process We Follow

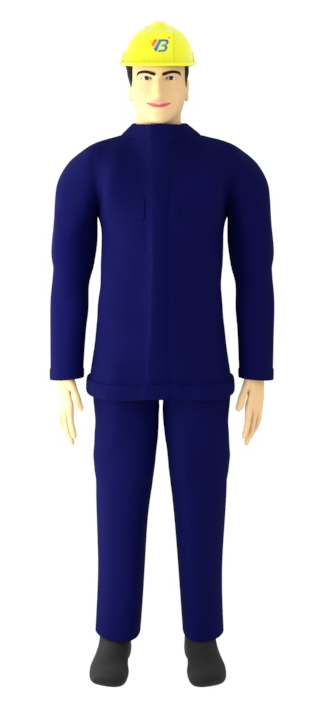

arc flash ppe category, 12 cal arc flash suit

Features and Specification:

• Coverall : MHP / Protera fabric according to NFPA 70E

• Inherently flame retardant in nature of fabric and sewing thread

• MHP / Protera Dupont™ which is made from a blend of Nomex+ Kevlar+ Other High strength fibers

• Fabric is inherently flame retardant in nature. That are hard - wearing, durable, washable, color fast, comfortable and breathable, freedom of movement to user

• Coverall is front opening type having one central zipper cover with flap provided

• Pockets: The coverall is having full sleeve with 4 pockets with flaps - 2 pockets on the chest portion either side or 2 pockets on front hip area on either side

• Collar is having complete closed design to ensure better protection to the user

• Multi hazard coverall (or) Jacket and Trouser, FR and Arc flash resistance

Jacket & Trouser :

• Jacket and Trouser having 2 Pockets with flaps of Velcro closure

• Outer shell: MHP / Protera

Various Designs and Patterns are available in full sleeve with extra pockets

• Optional: Flame retardant retro reflective tapes – Silver (or) Yellow / Silver / Yellow Garments with Logo Embroidery / Printed

• GSM Available: 220 to 240

• Size: S to XXXL as per the requirements of EN340

• Colors: Orange | Yellow

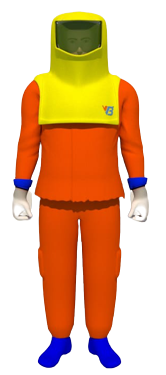

12 cal arc flash suit, arc flash hood, 40 cal arc flash suit

Features and Specification :

Jacket and Trouser :

• Jacket is aesthetically designed to facilitate ease of movement with central closure of hook and loop to locking mechanism

• Throat tab for extra protection of throat against arc flashes, one secret internal pocket

• Sleeves are provided with dual layers of NOMEX® wristlets, hook, loop closure to firm fit

• Trouser is provided with elastic and hook, loop at waist to firm fit

• Crotch central zipper along with hook &loop closure

• Ankles are provided with hook and loop to facilitate fitting on high boots

• NFPA 70E Category 2 electric arc protection

• Lightweight, comfort and durability

• 100% inherent flame resistance fabric that will never wash out

Hood :

• Detachable wearing with an inert, high temperature withstanding visor and held in place by tying straps

• Hoods are fitted with a wide angle window. Hood are provided with a peak on the Fore head for wider vision and are over head wearing type.

• Arc flash protection hood with hard hat.

• ATPV rating of Hood face shield: Tested according to 18 cal / cm²

• Fabric: Nomex® IIIA - Two Layers

• Size: S to XXXL

• Color: Orange | Yellow

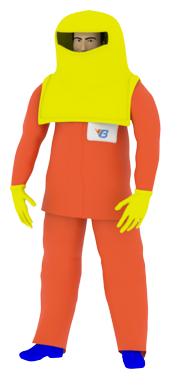

electrical ppe, 40 cal arc flash suit, arc flash hood

Features and Specification:

• Multi Layer: Two Layers of Nomex® IIIA with FR non woven Nomex / Kevlar

Jacket and Trouser:

• Jacket is aesthetically designed to facilitate ease of movement with central closure of hook and loop to locking mechanism

• Throat tab for extra protection of throat against arc flashes, One Secret Internal pocket

• Sleeves are provided with dual layers of NOMEX® wristlets, hook, loop closure to firm ft

• Trouser is provided with elastic and hook, loop at waist to firm fit. Crotch central zipper along with hook & loop closure

• Ankles are provided with hook and loop to facilitate fitting on high boots

• NFPA 70E Category 4 electric arc protection

• Lightweight, comfort and durability

• 100% inherent flame resistance that will never wash out

Hood:

• Detachable wearing with an inert, high temperature withstanding visor and held in place by tying straps

• Hoods are fitted with a wide angle window tested to withstand 40cal/cm². Hood are provided with a peak on the forehead for wider vision and are over head wearing type

• Arc flash protection hood with hard hat

• ATPV rating of Hood face shield: Tested according to 40cal/cm²

• Fabric: Nomex® IIIA - Three Layers

• Size: S to XXXL

• Color: Orange | Yellow

More Features

industrial safety equipment, arc flash ppe requirements

The Arc flash personal protection equipment required should be determined by conducting a Power system studies called Arc flash risk assessment or arc flash study. The Arc Flash analysis will determine the incident energy at every panel. This can be used by the working personnel to determine which arc flash suit and arc flash ppe he should wear. The arc flash ppe category range starts from 8 or 12 cal arc flash suit, arc flash hood ranging upto 40 cal arc flash suit. The electrical ppe is additional ppe to the arc flash ppe which is determined conducting the Power system studies of arc flash risk assessments.

Arc Flash PPE is highly recommended to use after completion of arc flash services to the facility only by the skilled arc flash service engineers. These personal protective equipments are suggested at every individual panel based on the incident energy emits when any fault happens to safeguard the workmen from serious injury or death. Arc Flash Safety PPE is completely different from industrial personal protective equipments. Generally in industries PPE are used at the work location to protect from the mishaps happen in the site. They protect from the civil works, mechanical works, electrical shocks etc. But the electrical arc flash personal protective equipment are to be used only with the guidance of respective related maintenance engineer. VB Engineering Hyderabad supplies the Arc Flash Electrical Safety Products of Salisbury by Honeywell which is a leading company in supply of PPE that comply with ASTM requirements and OSHA regulations.

Our expertise electrical team will attend your facility with prior intimation. They will collect all the required data with images using VB Tantra mobile app. Then digitize the data to make available to back-office team simultaneously for data verification and validation purpose.

Our dedicated back-end team will coordinate with onsite team for data verification and validation. Once the data is found as per ground reality, by using system softwares like ETAP/ SKM power tools, they perform analysis and obtain the equipment wise incident energies and arc flash boundaries there by find the level of protection needed.
